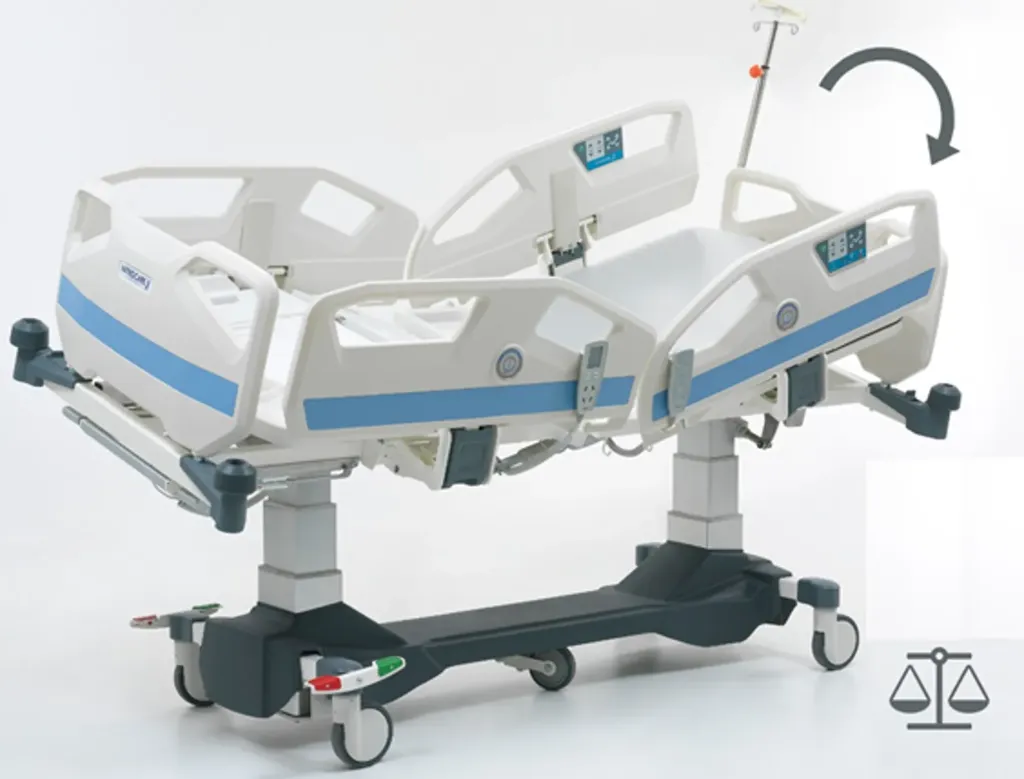

5-Motor Column ICU Bed with Lateral Tilt (SANTE)
Designed for intensive care units, this column-type ICU bed offers advanced positioning, high stability, and efficient patient handling. The 5-motor system ensures smooth and independent movements, while the integrated lateral tilt enhances patient care, pressure management, and clinical procedures.
The column design improves hygiene, accessibility, and compatibility with imaging systems, making it suitable for modern ICU environments.
Functions & Features
-
Motorized lateral tilt (left/right)
-
Motorized backrest, legrest, height & Trendelenburg
-
Handset + nurse control panel (lockable)
-
Electronic & mechanical CPR
-
Fowler & vascular positions
-
ABS head & foot boards (removable)
-
Polypropylene side rails
-
Central-lock castors + 5th wheel
-
Battery backup
-
X-ray cassette holder
-
Bed extension
-
IV pole, accessory holders, bumpers
-
Electrostatic powder-coated frame
Technical Data
-
Dimensions: 2160 × 1070 mm
-
Height range: 520 – 900 mm
-
Castors: 150 mm (central locking)
-
5th castor: 125 mm
-
Frame: Steel with powder coating
-
Surfaces: ABS / HPL
