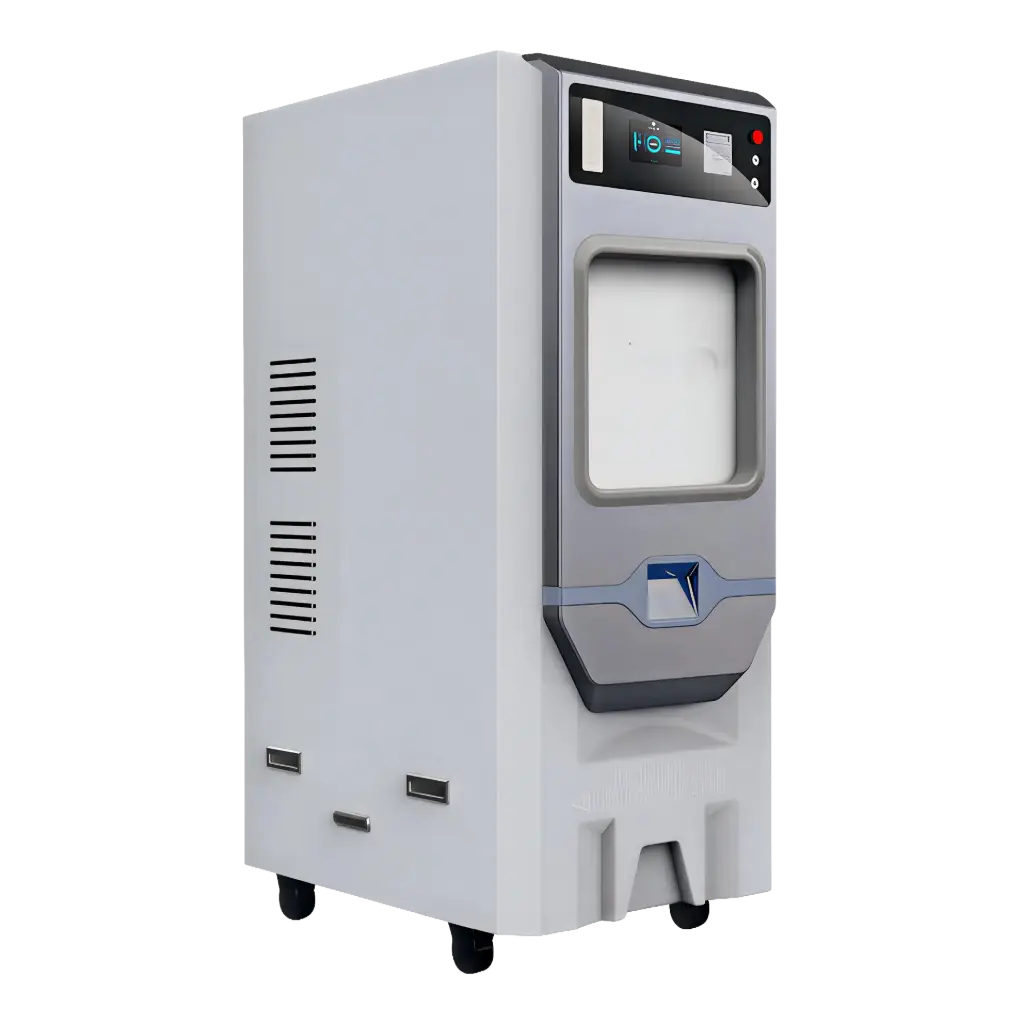

Cassette Hydrogen Peroxide (H₂O₂) Plasma Sterilizers provide advanced low-temperature sterilization for heat- and moisture-sensitive medical instruments. The system uses plasma technology to deliver fast, safe, and residue-free sterilization without steam or water.
Technology
-
Hydrogen Peroxide Plasma sterilization
-
Operating temperature: 45–55°C
-
Vacuum + plasma phase process
-
Dry sterilization, no toxic residues

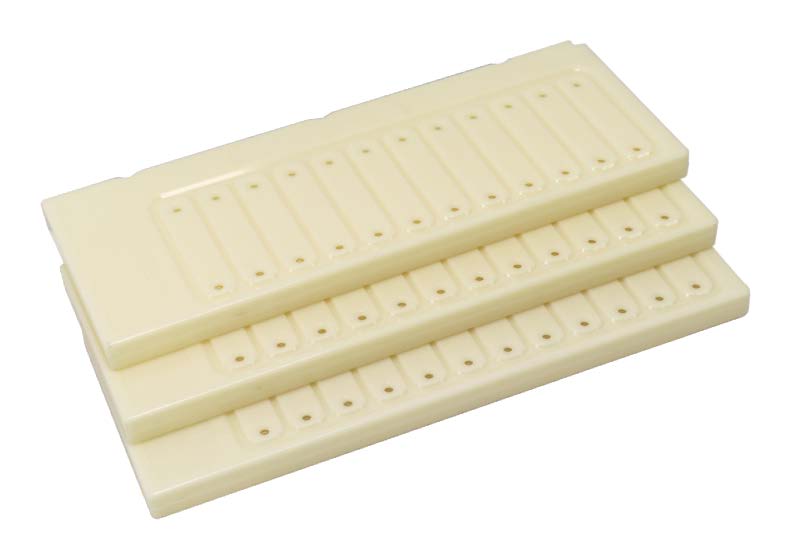

Cassette System
-
Pre-filled H₂O₂ capsules (5 g each)
-
1 cassette = 12 capsules
-
Rapid mode: 1 capsule / cycle
-
Enhanced & lumen modes: 2 capsules / cycle
-
Safe, precise dosing with no chemical handling
-
Consistent sterilization performance
Performance
-
Cycle time: Short 30 min – Long 50 min
-
Programs: rapid, enhanced, lumen
Capacity Options
Materials Compatibility
-
Metal instruments
-
Plastics and polymers
-
Endoscopes and optical devices
-
Heat-sensitive equipment
Control & Safety
-
Siemens PLC + touchscreen interface
-
Automatic door locking
-
Continuous monitoring (pressure, temperature, safety)
-
Data recording (USB / printer)
Utilities
-
Power: 220–240V, 50/60 Hz
-
No water or steam required
-
Energy efficient operation
